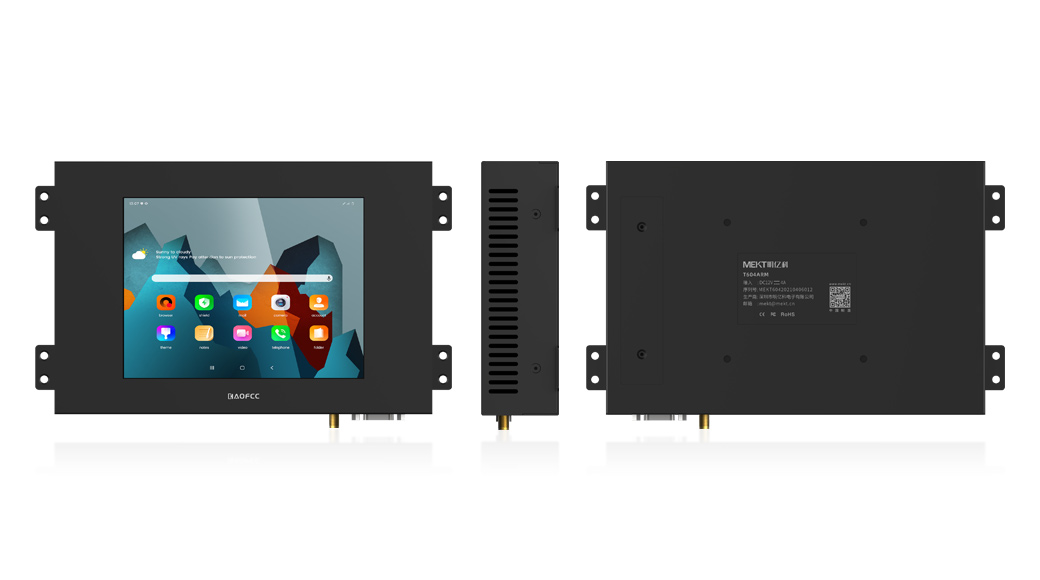

6.4-inch Android all-in-one machine

Display panel

Brand

MEKT明亿科

Model

T604ARM

Size/Ratio

6.4 inch 4:3

Resolution

1024*768

Brightness

280cd/㎡(Can be customized 1000cd/㎡)

Contrast degree

800:1

Display color

16.7M

Response time

2-5ms

Viewing angle

55/50/55/50(Typ.CR≥10)

Pixel pitch mm

0.126（H）X0.126（V）

Picture quality

3D noise reduction High-definition signal Progressive scan

Touch function

Touch screen

capacitive touch screen (10 points)

Surface hardness

≥3H

Transmittance

＞95%

Positioning accuracy

less than 2MM

Click life

＞60 million times

Touch media

current sensing, capacitive touch pen, finger

Right-click function

Click a certain point, long press for more than 3 seconds

Touch interface

USB

Motherboard function

Motherboard

HAOFCC industrial grade motherboard

CPU

RK3568  Cortex-A55

Quad-core 2GHz

Core ARM Mali-G52

RAM

2GB (optional 4G)

Built-in storage

16GB (optional 32G)

Built-in speaker

Built-in speaker

Decoding resolution

Support up to 3840*2160

RTC real-time clock

Support

Time switch machine

Support

Operating system

Android 11

LAN

LAN   100/1000M adaptive

USB

USB*2

TF/Card

card slot*2

COM

COM*1

HD

HD

Audio

Audio output, support left and right channel output

Wireless network

Wireless network card

Wifi

Power input

AC/DC

DC12V

Working environment

Working temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, non-condensing

Storage temperature/humidity

-15℃ to +65℃/ 0-90% relative humidity, non-condensing

Product service

After-sales service

One year warranty and lifetime maintenance

Customized service

Material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc., all OEM/ODM
