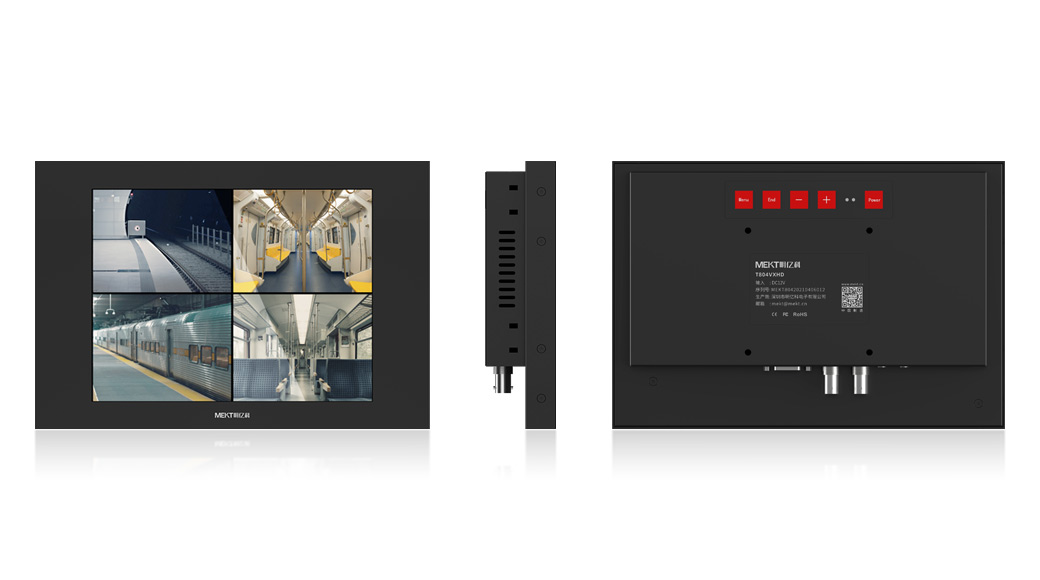

8.4 inch monitor

Display Pane

Brand

MEKT明亿科

Model

T804VXHD

Size/Proportion

8.4 inch  4:3

Resolution

1024*768

Brightness

350cd/㎡（Upgradable 1000cd/㎡）

Contrast

800:1

Cisplay color

16.7m

Response time

3-5ms

Visible angle

60/60/50/50(Typ.CR≥10)

Pixel pitch(mm)

0.213（H）X 0.213（V）

Draw quality

3D noise reduction, high-definition signal, progressive scan

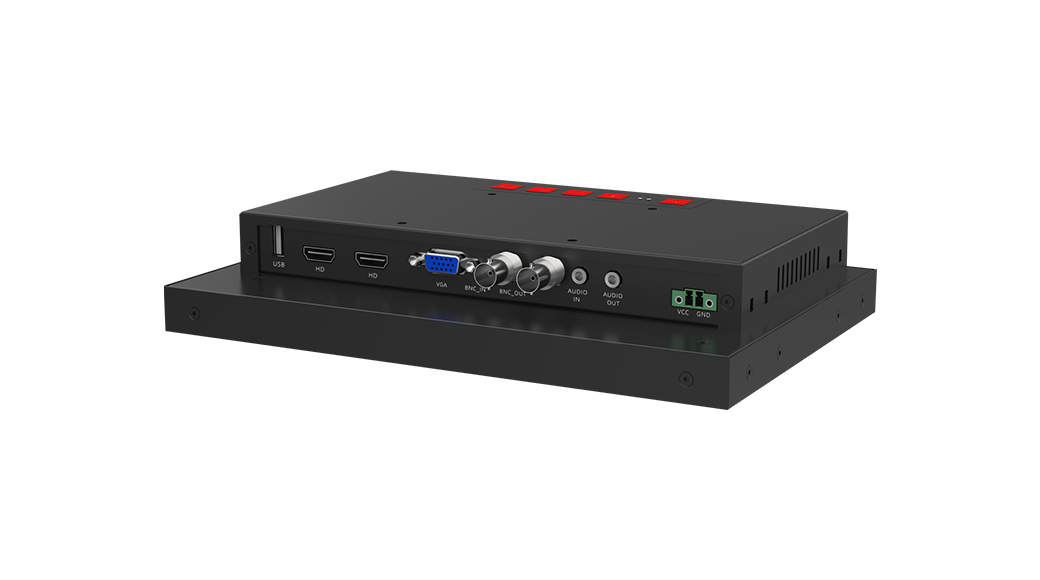

Interface Function

Power input

DC12V

HD

HD*2

VGA

VGA*1

video input

BNC terminal*1 input

video output

BNC terminal*1 output

USB input

Play video and upgrade software functions

AUDIO

AUDIO input*1、AUDIO output*1

OSD

Chinese、English

Computer input

Line synchronization range 30≈80KHZ

Field synchronization range 50≈75KHZ

Proportional support

4:3, 16:9, Panoramic

HD support

480I、576I、720P、1080I、1080P

Screen display mode

/

Audio

Built-in speakers

Work Environment

Operating

Temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, no condensation

Storage

Temperature/humidity

-10℃ to +65℃/ 0-90% relative humidity, no condensation

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
