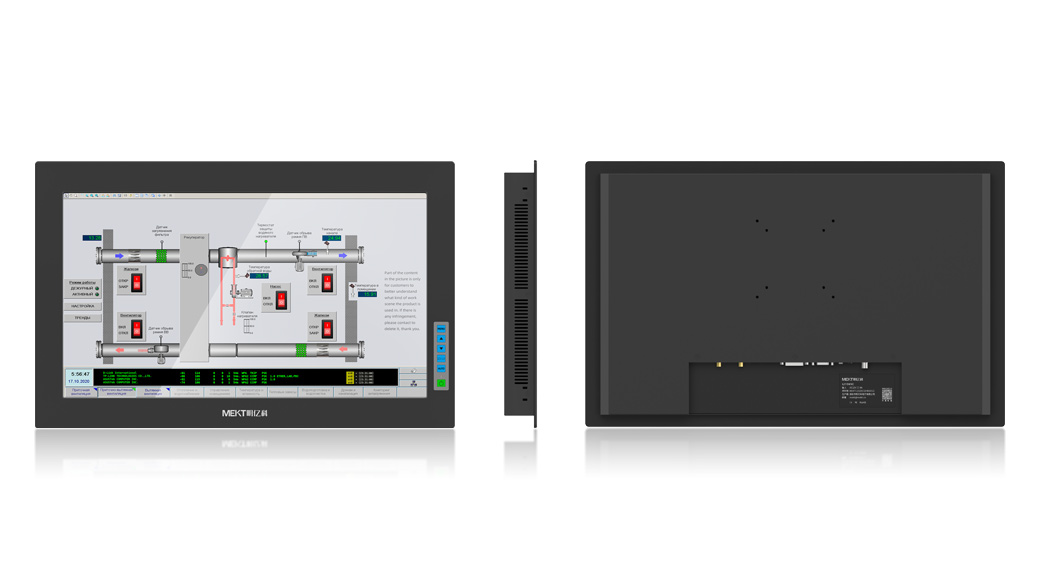

21.5 inch touch screen display

Display Pane

Brand

MEKT明亿科

Model

L215WX

Size/Proportion

21.5 inch  16:9

Resolution

1920*1080

Brightness

300cd/㎡(Can be customized 1000cd/㎡)

Contrast

800:1

Display color

16.7m

Response time

2-5ms

Visible angle

85/85/85/85(Typ.CR≥10)

Pixel pitch(mm)

0.24825（H）X0.24825（V）mm

Draw quality

3D noise reduction, high-definition signal, progressive scan

Touch Function

Touch screen

5-wire Resistive touch

Surface hardness

≥3h

Transmittance

＞95%

Positioning accuracy

less than 2mm

Click lifetime

> 60 million times

Touch medium

Resistance touch pen, finger

Right-click function

Click on a certain point and press for more than 3 seconds

Touch interface

USB (optional COM)

Support system

win7, win8, win10, android, linux and so on

Motherboard

Function

Refresh frequency

60Hz

Power input

DC12V

Functional interface

HD，DVI，VGA，Audio

Work Environment

Operating

Temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, no condensation

Storage

Temperature/humidity

-15℃ to +65℃/ 0-90% relative humidity, no condensation

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
