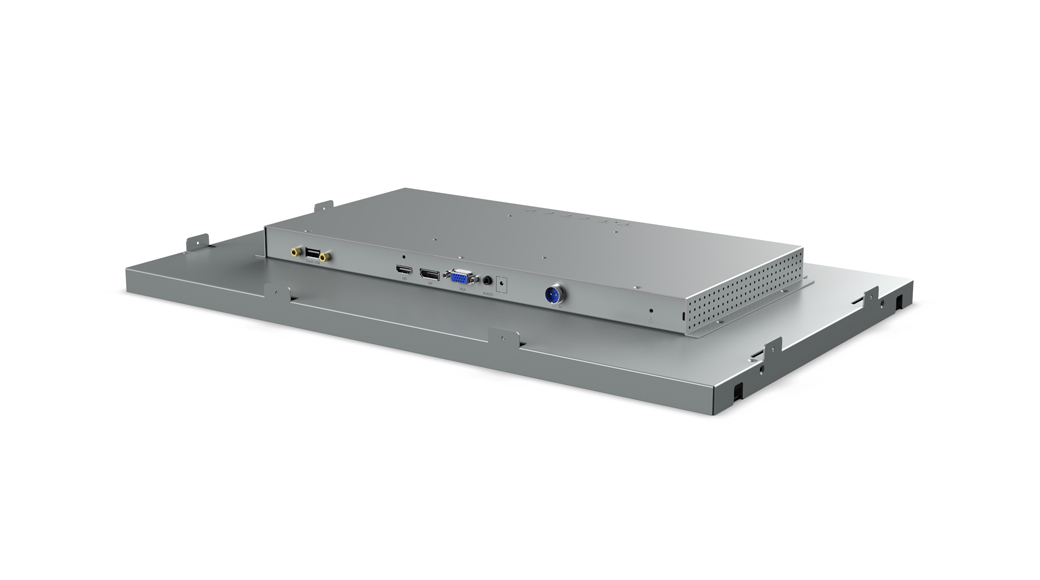

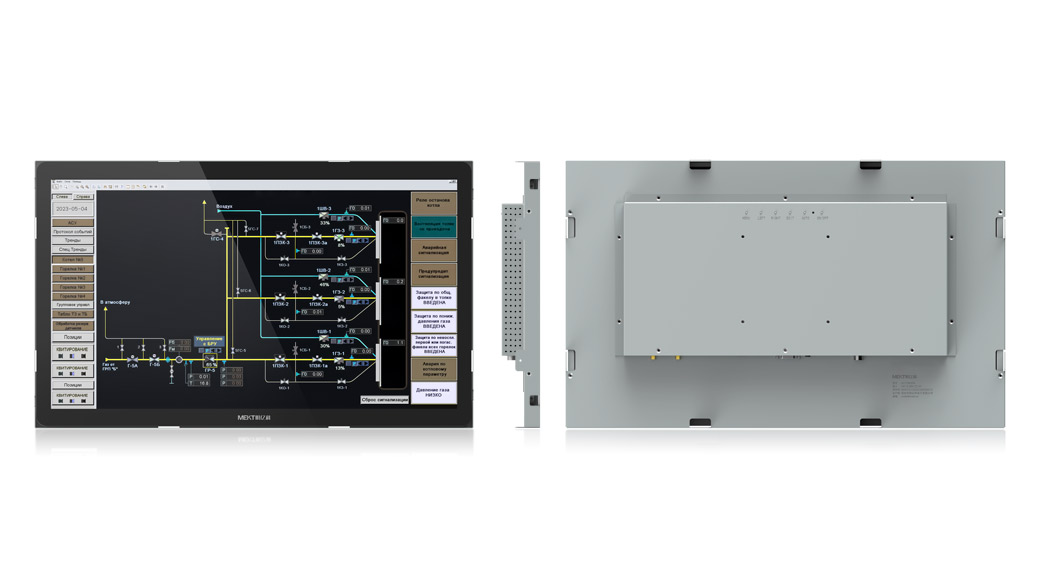

Industrial embedded touch display

21.5-inch open display

Product description: DC12-36V wide voltage power supply, upgraded anti detachment interface/anti reverse connection protection, supporting customized industry specific environments, meeting the harsh environmental require
INQUIRY

Display Pane	Brand	MEKT明亿科
	Size/Proportion	21.5 inch 16:9
	Model	K215WUGA
	Brightness	450cd/㎡（1000cd/㎡）
	Resolution	1920*1080
	Contrast	1000:1
	Display color	16.7M
	Response time	2-5ms
	Visible angle	85/85/85/85
	Pixel pitch(mm)	0.248(H)X 0.248(V)
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Touch Function	Touch screen	Capacitive touch screen (10 points)
	Surface hardness	≥6h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 60 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	Click on a certain point and press for more than 3 seconds
	Touch interface	USB (optional COM)
	Support system	windows, android, linux and so on


Motherboard Function	Refresh frequency	60Hz
	Power input	DC12-36V
	Functional interface	HD，DP，VGA，Audio


Work Environment	Operating Temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, no condensation
	Storage Temperature/humidity	-15℃ to +65℃/ 0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
