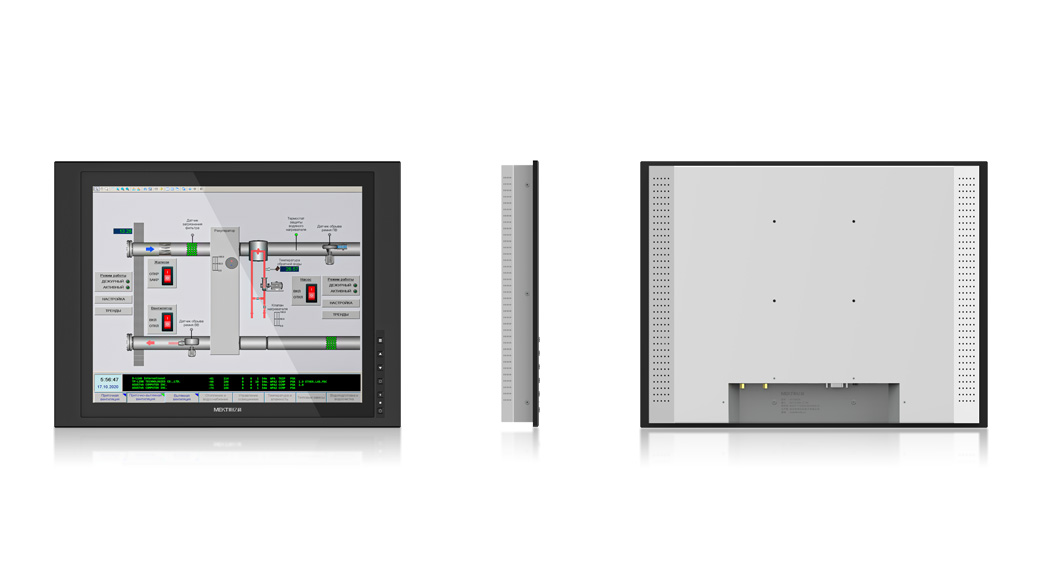

17-inch touch screen display

Display Pane

Brand

MEKT明亿科

Size/Proportion

17 inch 5:4

Model

V170XGA

Brightness

450cd/㎡

Resolution

1920*1080

Contrast

1000:1

Display color

16.7M

Response time

2-5ms

Visible angle

85/85/85/85

Pixel pitch(mm)

0.264(H)X 0.264(V)mm

Touch screen

Touch screen

Projected multi-point capacitive touch screen (10 points)

Touch screen hardness

6H

Positioning accuracy

less than 2MM

Ct.Life

≥50 million times

Touch media

Capacitive Touch Pen, Fingers

Right click functionality

click on a point, long and hold more than 3 seconds

Touch interface

USB(optional COM)

Support system

win7, win8, win10, android, linux and so on

Motherboard

Function

Refresh frequency

60Hz

Power input

DC12-36V

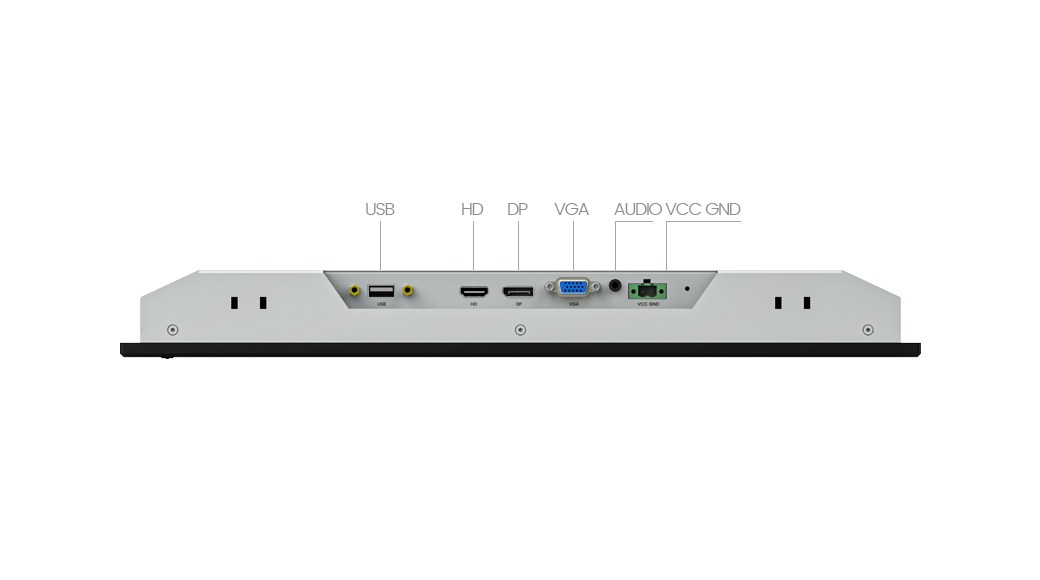

Functional interface

HD/DP/VGA/Audio

Environment

Operating

temperature/humidity

-10℃ to +60℃/0-80% relative humidity, no condensation

Storage

temperature/humidity

-15℃ to +65℃/0-90% relative humidity, no condensation

Vibration resistant

30Hz, X, Y, Z axis 60 minutes each

Esd protection

Class 3, contact discharge ± 6KV, air discharge ±8KV

Panel level

IK6

Safety regulations

Test standards

IEC60601

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
