Ship/Military Touch Screen

AG anti glare display

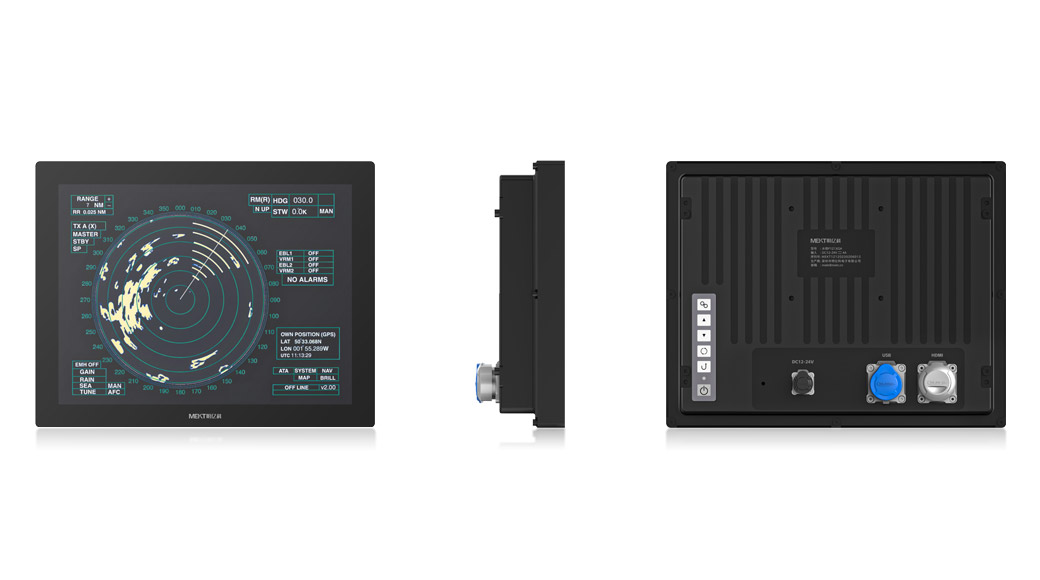

Product description: 水母P121XGA is a solution specifically designed for display equipment in the shipping/navigation/military fields. It features a fully enclosed military grade aluminum alloy structure, complete corrosion
INQUIRY

Display Pane	Brand	MEKT明亿科
	Size/Proportion	12.1 inch 4:3
	Model	水母P121XGA
	Brightness	450cd/optional 1000cd/㎡
	Resolution	1024*768
	Contrast	1000:1
	Display color	16.7M
	Response time	2-5ms
	Visible angle	85/85/85/85
	Pixel pitch(mm)	0.240(H)X 0.240(V)


Touch screen	Touch screen	Projected multi-point capacitive touch screen (10 points)
		Using AG+ Glass binding technology
	Touch screen hardness	6H
	Positioning accuracy	less than 2MM
	Ct.Life	≥50 million times
	Touch media	Capacitive Touch Pen, Fingers
	Right click functionality	click on a point, long and hold more than 3 seconds
	Touch interface	USB(optional COM)
	Support system	win7, win8, win10, android, linux and so on


Motherboard Function	Refresh frequency	60Hz
	Power input	DC12-36V

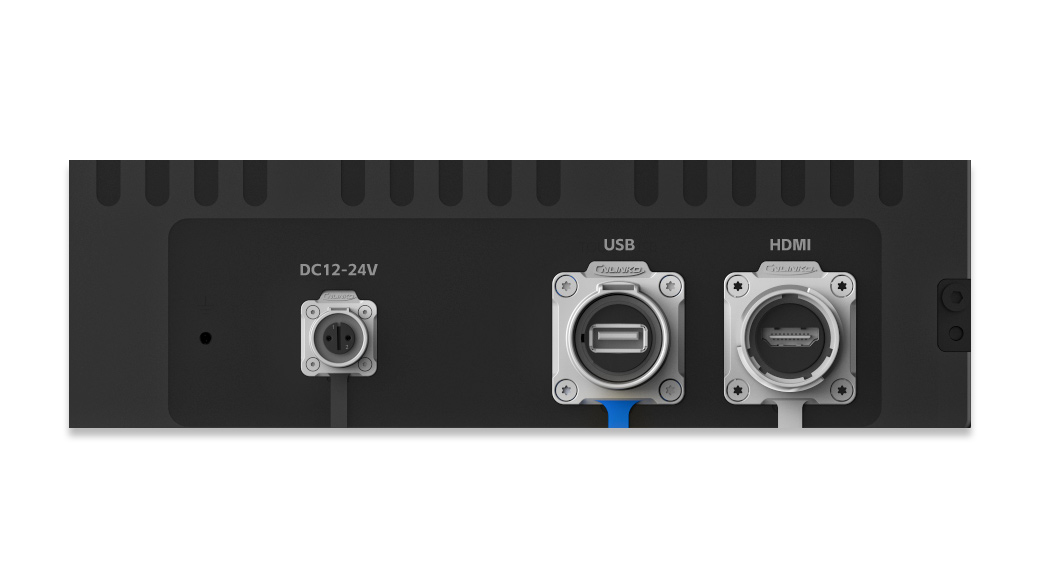

	Functional interface	HD


Environmental parameters	Operating temperature/humidity	-20℃ to +70℃/ 0-80% relative humidity, no condensation
	Storage temperature/humidity	-40℃ to +80℃/ 0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
