Ship/Military Touch Screen

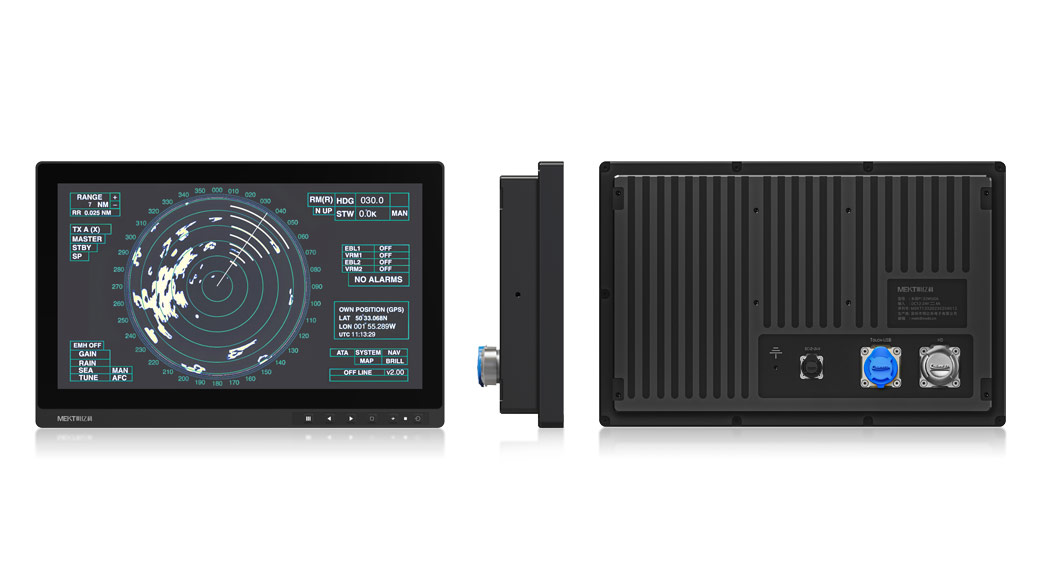

13.3 inch AG high brightness touch display

Product description: 水母P133WUGA is a solution specifically designed for display equipment in the shipping/navigation/military fields. It features a fully enclosed military grade aluminum alloy structure, complete corrosio
INQUIRY

Display Pane	Brand	MEKT明亿科
	Size/Proportion	13.3 inch 16:9
	Model	水母P133WUGA
	Brightness	1000cd/㎡
	Resolution	1920*1080
	Contrast	1000:1
	Display color	16.7M
	Response time	2-5ms
	Visible angle	85/85/85/85
	Pixel pitch(mm)	0.153(H)X 0.153(V)mm


Touch screen	Touch screen	Projected multi-point capacitive touch screen (10 points)
		Using AG+ Glass binding technology
	Touch screen hardness	6H
	Positioning accuracy	less than 2MM
	Ct.Life	≥50 million times
	Touch media	Capacitive Touch Pen, Fingers
	Right click functionality	click on a point, long and hold more than 3 seconds
	Touch interface	USB(optional COM)
	Support system	win7, win8, win10, android, linux and so on


Motherboard Function	Refresh frequency	60Hz
	Power input	DC12-24V

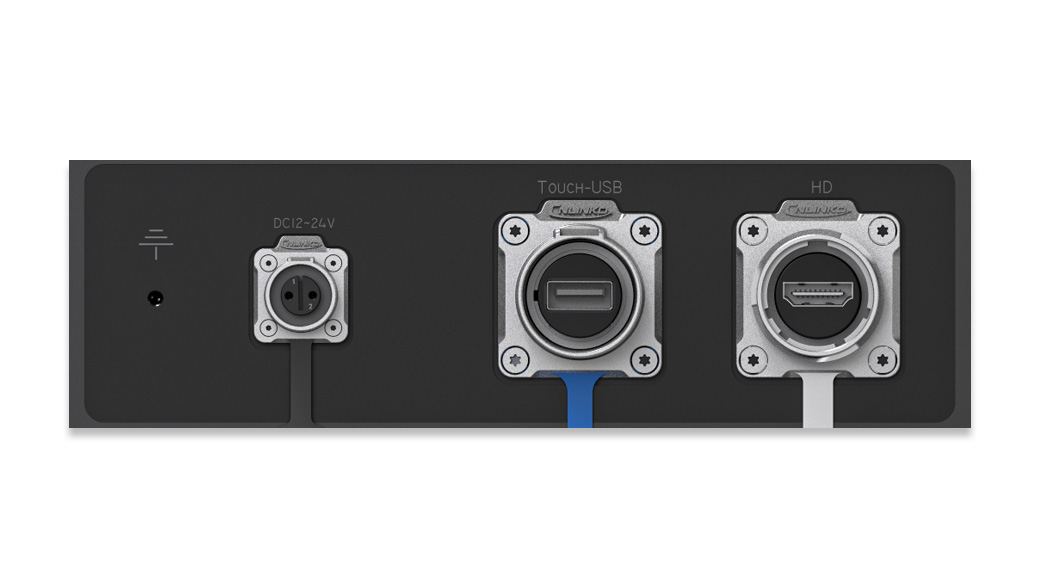

	Functional interface	HD


Environment	Operating temperature/humidity	-20℃ to +70℃/0-80% relative humidity, no condensation
	Storage temperature/humidity	-40℃ to +80℃/0-90% relative humidity, no condensation
	Vibration resistant	30Hz, X, Y, Z axis 60 minutes each
	Esd protection	Class 3, contact discharge ± 6KV, air discharge ±8KV
	Panel level	IK6
	Test standards	IEC60601
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
