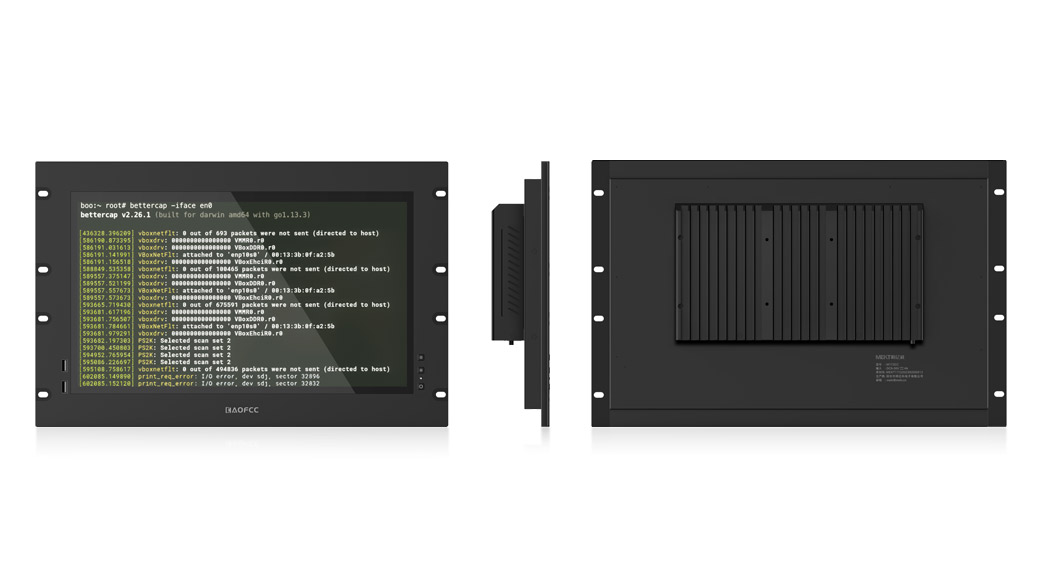

Industrial X86 touch one machine

17.3-inch reinforced touch screen all-in-one computer

Product description: Product description: Metal reinforced solid case, dust-proof, anti vibration, anti-interference Power on boot function, OSD film button control Support 100*100mm wall mounted / desktop type, embedded
INQUIRY

Display Pane	Brand	HAOFCC
	Size/Proportion	17.3 inch 16:9
	Model	M173CC
	Brightness	450cd/㎡optional 1000cd/㎡
	Resolution	1920*1080
	Contrast	1000:1
	Display color	16.7m
	Response time	2-5ms
	Visible angle	85/85/85/85(Typ.CR≥10)
	Pixel pitch	0.1989（H）X 0.1989（V）mm
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Touch Function	Touch screen	Capacitive touch screen (10 points)
	Surface hardness	≥6h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 60 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	click on a certain point and press for more than 3 seconds
	Touch interface	USB


Motherboard Function	Mainboard	HAOFCC industrial motherboard
	CPU	Intel Celeron J6412 Quad-core
		the cpu frequency is 2.0ghz，Max Speed Up to 2.6GHz
		Secondary cache 1.5 MB L2 Cache
	integrated graphics	Intel® UHD Graphics for 10th Gen Intel® Processors
	graphics card frequency	400MHz
	dynamic frequency	800MHz
	System	Windows 10 IoT Enterprise（Support Windows11，Linux，UOS）
	RAM	4G (optional 8G/16G/32G)
	SSD	128G(optional 256G/512G/1T/2T)
	LAN	LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive
	USB	USB3.0*6
	COM	RS232(485)*4 （Customizable RS422）
	HD	HD*1 Resolution up to 4096x2160@24Hz
	SIM	SIM*1 Micro SIM Card Slot


Wireless Network	Wireless card	Wifi is not available as standard (optional)
Open Close	Power	Power*1 (power-on and power-on function can be set)
Power Input	AC/DC	DC9-36V
Watchdog	Watch dog timer	0-255 seconds, providing watchdog routine
Product Power	Power	≤20W
Work Environment	Operating Temperature/humidity	-10℃ to +60℃/0-80% relative humidity, no condensation
	storage Temperature/humidity	-15℃ to +65℃/0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
