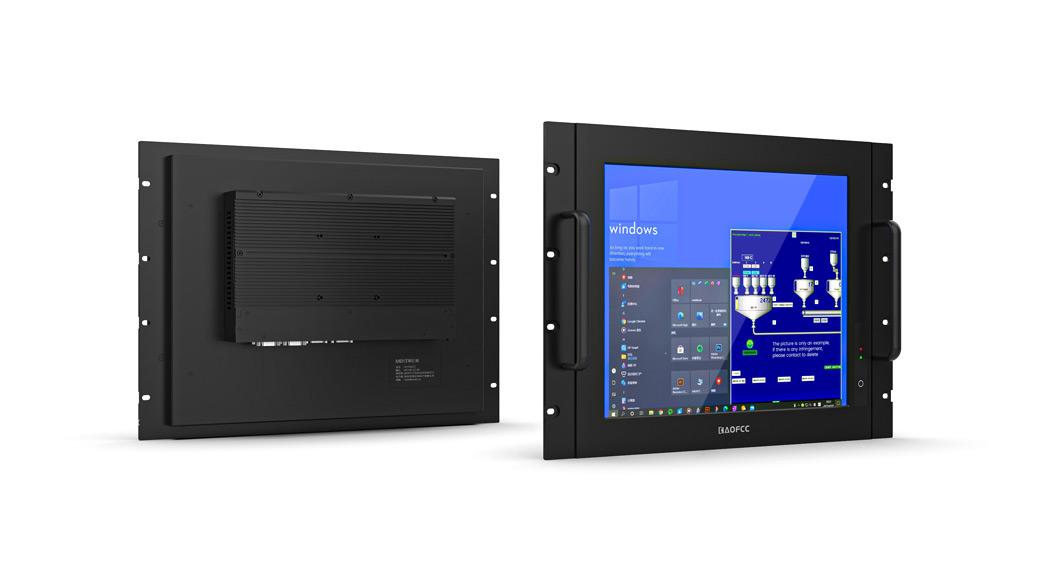

17-inch rack-mounted touch all-in-one

Display Pane

Brand

HAOFCC

Model

M1700CC

Size/Proportion

17inch 5:4

discrimination rate

1280*1024

Brightness

380cd/㎡

Contrast

1000:1

Display color

16.7m

Response time

2-5ms

Visible angle

80/80/70/70(Typ.CR≥10)

Pixel pitch(mm)

0.264（H）X 0.264（V）

Draw quality

3D noise reduction, high-definition signal, progressive scan

Touch Function

Touch screen

5-wire Resistive touch

Surface hardness

≥3h

Transmittance

＞95%

Positioning accuracy

less than 2mm

Click lifetime

> 60 million times

Touch medium

Current sensing, capacitive touch pen, finger

Right-click function

click on a certain point and press for more than 3 seconds

Touch interface

usb

Motherboard

Function

Mainboard

HAOFCC industrial motherboard

CPU

Intel Celeron 3867U dual-core dual-thread

the cpu frequency is 1.8ghz

Level 3 cache 2MB

integrated graphics

intel HD Graphics 610

frequency graphics card

300MHz

dynamic frequency

900MHz

RAM

4GB

SSD

64GB(optional 32G\128G\500G\1T)

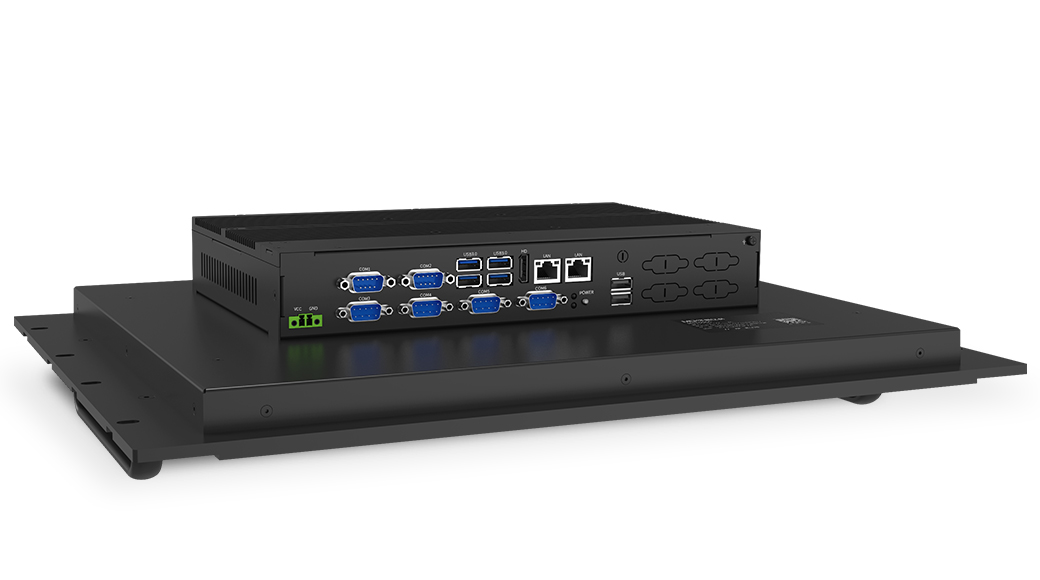

LAN

LAN*2 100/1000M adaptive

USB

USB3.0*4   USB2.0*2

COM

RS232*6

HD

HD*1

Support system

win7, win8, win10, android, linux and so on

Wireless Network

Wireless card

Wifi is not available as standard (optional)

Open Close

Power

Power*1 (The power-on function can be set)

Power Input

AC/DC

DC12V(Wide voltage 12-36V can be ordered)

Watchdog

Watch dog timer

0-255 seconds, providing watchdog routine

Work Environment

Operating

Temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, no condensation

storage

Temperature/humidity

-15℃ to +65℃/0-90% relative humidity, no condensation

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
