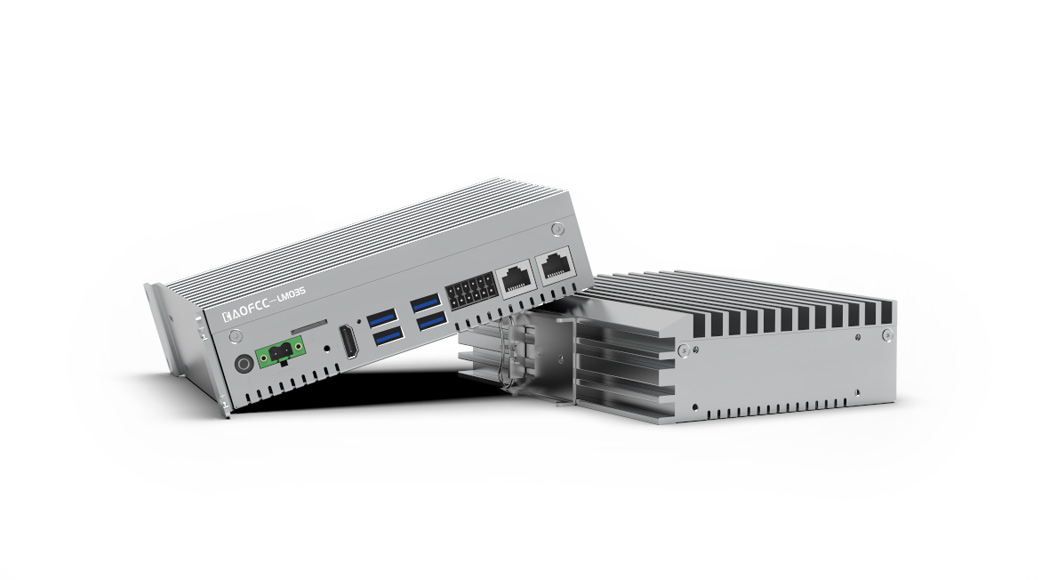

Fanless industrial control host

5G embedded industrial computer

Product description: Adopting an all aluminum alloy structural design and independently developing an industrial grade motherboard solution, it supports 4G 5G network port with a 2.5G speed and better stability in Window
INQUIRY

Motherboard Function	Brand	MEKT明亿科
	Model	LM035
	mainboard	Intel Celeron J6412 Quad-core
	CPU	the cpu frequency is 2.0ghz
		Secondary cache 1.5 MB L2 Cache
		Intel Celeron J6412 Quad-core
	integrated graphics	Intel® UHD Graphics for 10th Gen Intel® Processors
	Graphics card frequency	400MHz
	dynamic frequency	800MHz
	RAM	4G (optional 8G/16G/32G)
	SSD	128GB(optional 32G/128G/512G/1T)
	LAN	LAN*2 100/1000M adaptive
	USB	USB3.0*4
	COM	RS232(485)*4
	HD	HD*1
	SIM	SIM*1


Wireless Network	Wireless card	Wifi is not available as standard (optional)
Open Close	Power	Power*1 (power-on and power-on function can be set)
Power Input	AC/DC	DC9-36V
Watchdog	Watch dog timer	0-255 seconds, providing watchdog routine
Product Power	Power	≤20W
Work Environment	Operating Temperature/humidity	-30℃ to +70℃/ 0-80% relative humidity, no condensation
	storage Temperature/humidity	-40℃ to +75℃/0-90% relative humidity, no condensation
		Temperature values are limited to the body and inside zero devices, but does not include the motherboard and memory. (If you need the whole machine, please consult)
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
