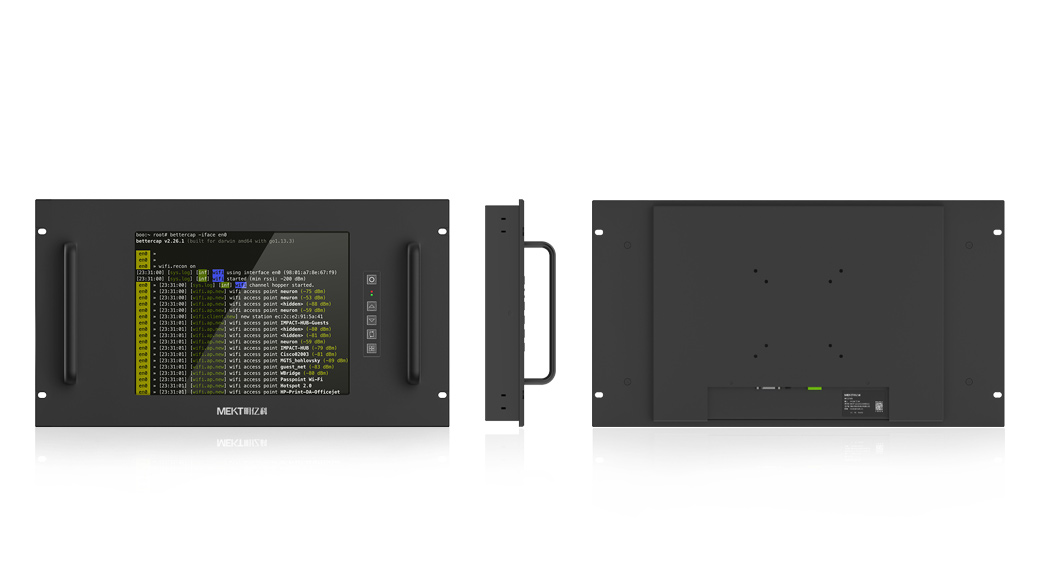

6U cabinet display 12.1-inch

Display Pane

Brand

MEKT明亿科

Model

M121VX

Size/Proportion

12.1 inch  4:3

Resolution

1024*768

Brightness

350cd/㎡(Can be customized 1000cd/㎡)

Contrast

800:1

Display color

16.7m

Response time

2-5ms

Visible angle

80/80/80/80(Typ.CR≥10)

Pixel pitch(mm)

0.240（H）X0.240（V）

Draw quality

3D noise reduction, high-definition signal, progressive scan

Touch Function

Touch screen

5-wire Resistive touch

Surface hardness

≥3h

Transmittance

＞95%

Positioning accuracy

less than 2mm

Click lifetime

> 60 million times

Touch medium

Resistance touch pen, finger

Right-click function

Click on a certain point and press for more than 3 seconds

Touch interface

USB (optional COM)

Motherboard

Function

Refresh frequency

60Hz

Power input

DC12-36V

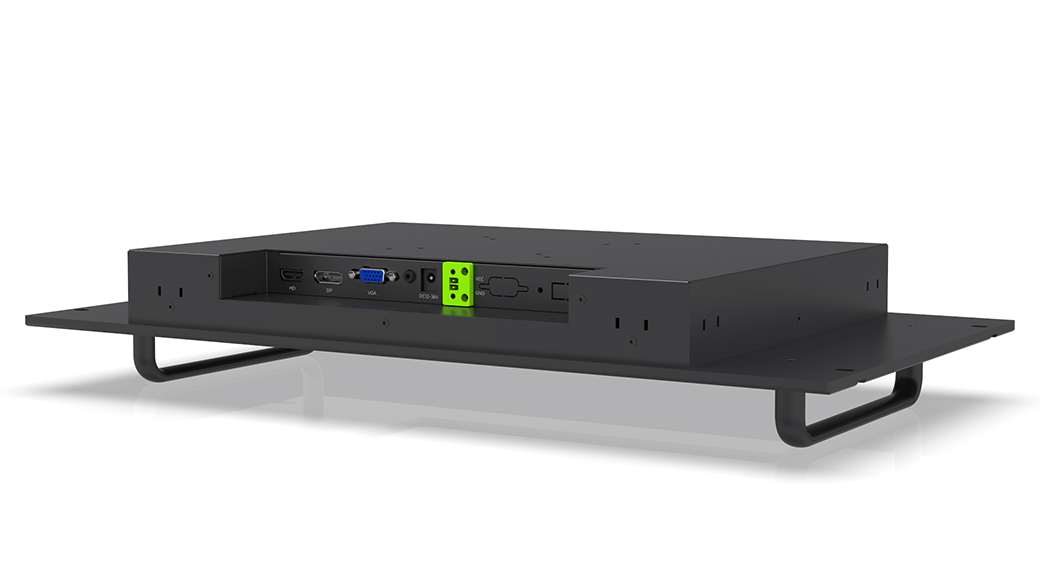

Functional interface

HD，DP，VGA，Audio

Work Environment

Operating

Temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, no condensation

Storage

Temperature/humidity

-15℃ to +65℃/ 0-90% relative humidity, no condensation

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
