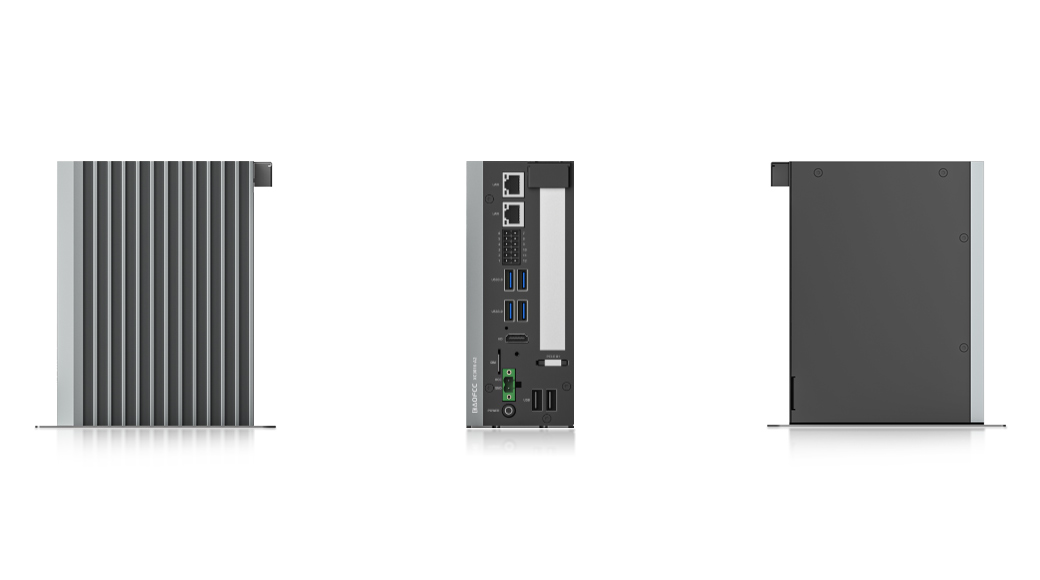

-40 ℃ industrial control case

Motherboard

Function

Brand

HAOFCC

Model

XC9016-A2

Mainboard

HAOFCC industrial motherboard

CPU

Intel Celeron J6412 Quad-core

the cpu frequency is 2.0ghz，Speed Up to 2.6GHz

Secondary cache 1.5 MB L2 Cache

integrated graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

graphics card frequency

400MHz

dynamic frequency

800MHz

System

Windows 10 IoT Enterprise（Support Windows11，Linux，UOS）

RAM

4G (optional 8G/16G/32G)

SSD

128G (optional 256G/512G/1T/2T)

LAN

LAN*2  Intel® 10M/100M/1000M/2.5Gbps adaptive

USB

USB3.0*4，USB2.0*2

COM

RS232(485)*4 （customized RS422）

HD

HD*1  Resolution up to 4096x2160@24Hz

SIM

SIM*1  Micro SIM Card Slot

Scalable

PCIEx1 card slot (support CAN/LAN/optical/serial cards, card size≤ 120mm×120mm)

Wireless Network

Wireless card

Wifi is not available as standard (optional)

Open Close

Power

Power*1 (power-on and power-on function can be set)

Power Input

AC/DC

DC9-36V

Watchdog

Watch dog timer

0-255 seconds, providing watchdog routine

Product Power

Power

≤20W

Work Environment

Operating

Temperature/humidity

-40℃ to +80℃/ 0-80% relative humidity, no condensation

storage

Temperature/humidity

-40℃ to +80℃/0-90% relative humidity, no condensation

The temperature value is limited to the body and inside zero components, memory and hard disk need to be customized

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
