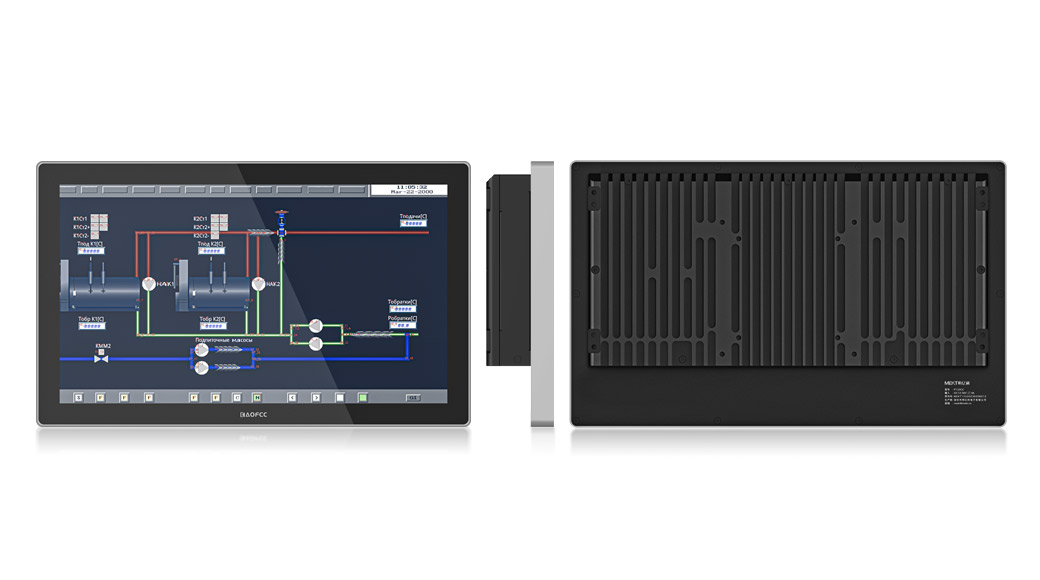

1000cd/㎡ brightness touch all-in-one machine

Display Pane

Brand

HAOFCC

Model

P133CCHS

Size/Proportion

13.3 inch 16:9

Resolution

1920*1080

Brightness

1000cd/㎡

Contrast

1000:1

Display color

16.7m

Response time

2-5ms

Visible angle

85/85/85/85(Typ.CR≥10)

Pixel pitch(mm)

0.153(H)X 0.153(V)mm

Draw quality

3D noise reduction, high-definition signal, progressive scan

Touch Function

Touch screen

Capacitive touch screen (10 points)

Surface hardness

≥6h

Transmittance

＞95%

Positioning accuracy

less than 2mm

Click lifetime

> 60 million times

Touch medium

Current sensing, capacitive touch pen, finger

Right-click function

click on a certain point and press for more than 3 seconds

Touch interface

USB

Motherboard

Function

Mainboard

HAOFCC industrial motherboard

CPU

Intel Celeron J6412 Quad-core

the cpu frequency is 2.0ghz，Max Speed Up to 2.6GHz

Secondary cache 1.5 MB L2 Cache

integrated graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

graphics card frequency

400MHz

dynamic frequency

800MHz

System

Windows 10 IoT Enterprise（Support Windows11，Linux，UOS）

RAM

4G (optional 8G/16G/32G)

SSD

128G (optional 256G/512G/1T/2T)

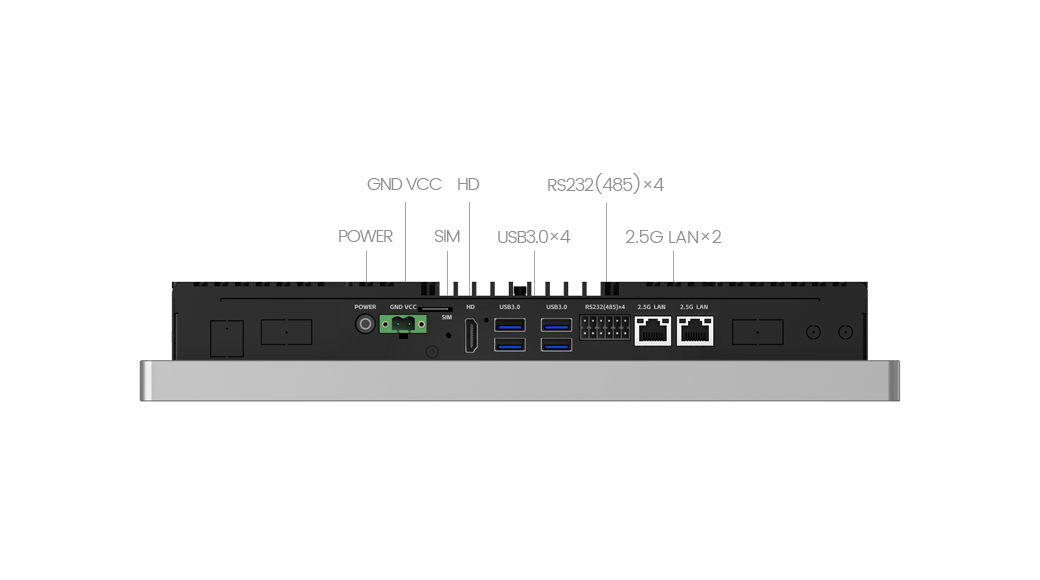

LAN

LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive

USB

USB3.0*4

COM

RS232(485)*4 （Customizable RS422）

HD

HD*1 Resolution up to 4096x2160@24Hz

SIM

SIM*1

Wireless Network

Wireless card

Wifi is not available as standard (optional)

Open Close

Power

Power*1 (power-on and power-on function can be set)

Power Input

AC/DC

DC9-36V

Watchdog

Watch dog timer

0-255 seconds, providing watchdog routine

Product Power

Power

≤20W

Work

Environment

Operating

Temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, no condensation

storage

Temperature/humidity

-15℃ to +65℃/0-90% relative humidity, no condensation

Vibration resistant

30Hz, X, Y, Z axis 60 minutes each

Esd protection

Class 3, contact discharge ± 6KV, air discharge ±8KV

Panel level

IK6

Test standards

IEC60601

ProductService

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
