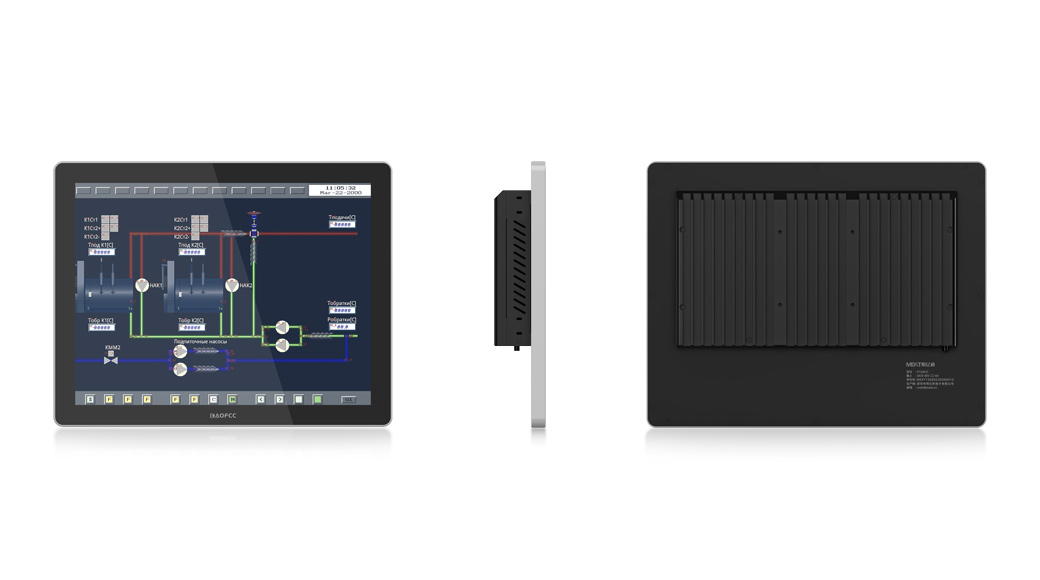

15 Inch Touch machine

Display Pane

Brand

HAOFCC

Size/Proportion

15 inch 4:3

Model

P150CC

Brightness

450cd/㎡ optional 1000cd/㎡

Resolution

1024*768

Contrast

1000:1

Display color

16.7M

Response time

2-5ms

Visible angle

85/85/85/85(Typ.CR≥10)

Pixel pitch

0.297（h）x 0.297（v）mm

Draw quality

3D noise reduction, high-definition signal, progressive scan

Touch Function

Touch screen

Capacitive touch screen (10 points)

Surface hardness

≥6h

Transmittance

＞95%

Positioning accuracy

less than 2mm

Click lifetime

> 60 million times

Touch medium

Current sensing, capacitive touch pen, finger

Right-click function

click on a certain point and press for more than 3 seconds

Touch interface

USB

Motherboard

Function

Mainboard

HAOFCC industrial motherboard

CPU

Intel Celeron J6412 Quad-core

the cpu frequency is 2.0ghz，Speed Up to 2.6GHz

Secondary cache 1.5 MB L2 Cache

integrated graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

graphics card frequency

400MHz

dynamic frequency

800MHz

System

Windows 10 IoT Enterprise（support Windows11，Linux，UOS）

RAM

4G (optional 8G/16G/32G)

SSD

128G(optional 256G/512G/1T/2T)

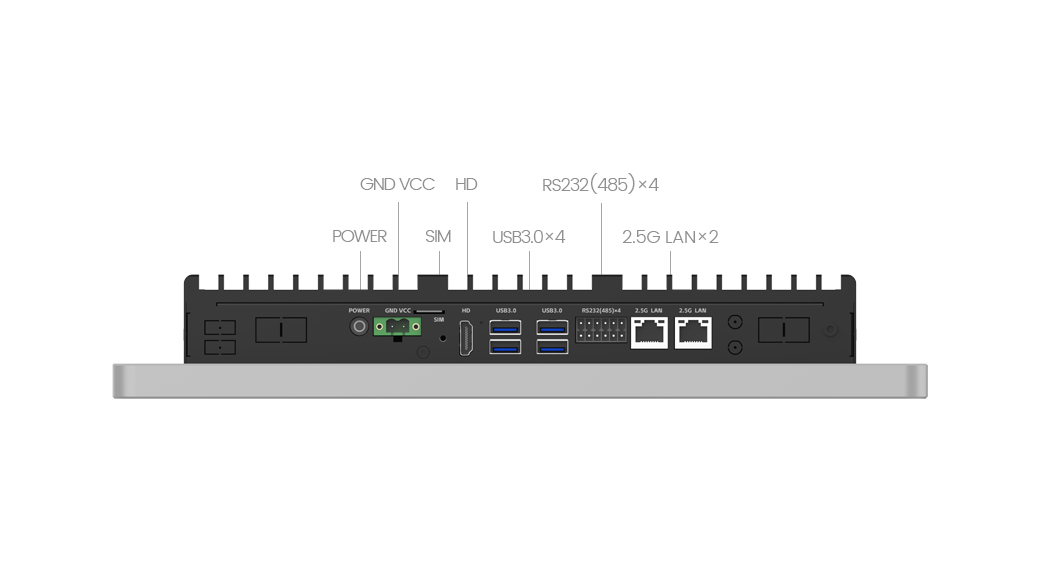

LAN

LAN*2  Intel® 10M/100M/1000M/2.5Gbps adaptive

USB

USB3.0*4

COM

RS232(485)*4 （customizable RS422）

HD

HD*1

SIM

SIM*1

Extensible

4 expansion interfaces,(interface type COM, GPIO,USB)

Wireless Network

Wireless card

Wifi is not available as standard (optional)

Open Close

Power

Power*1 (power-on and power-on function can be set)

Power Input

AC/DC

DC9-36V

Watchdog

Watch dog timer

0-255 seconds, providing watchdog routine

Product Power

Power

≤20W

Environment

Operating

Temperature/humidity

-20℃ to +70℃/0-80% relative humidity, no condensation

storage

Temperature/humidity

-40℃ to +80℃/0-90% relative humidity, no condensation

Vibration resistant

30Hz, X, Y, Z axis 60 minutes each

Esd protection

Class 3, contact discharge ± 6KV, air discharge ±8KV

Panel level

IK6

Safety regulations

Test standards

IEC60601

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
